Applicable VersionsNetSim Standard NetSim Pro


Applicable Releasesv13.3


This could be due to several reasons.  NetSim interacts with SUMO in runtime,  during VANET simulations.
Both Python and pywin32 are required for VANET simulations to happen successfully. This is essential for interfacing NetSim with SUMO which is a Python-based road traffic simulator. Usually, both python and the associated pywin32 package are installed automatically with NetSim installation. However, there could be installation issues, due to which installation may not have been completed successfully.
  • Check if Python 3.11.2 is installed on your PC from the control panel as shown below:

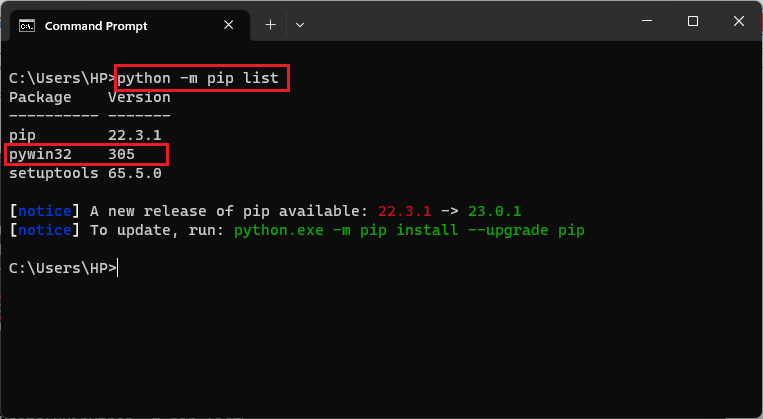

  • Open the Command prompt and execute the command python -m pip list to check if pywin32 is installed as shown below:

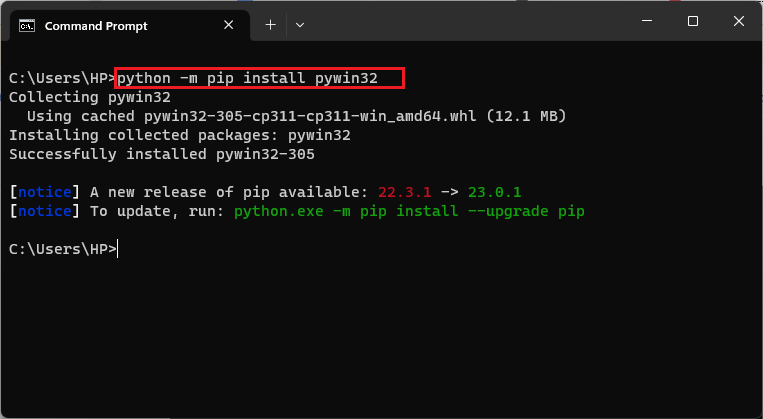

  • If pywin32 package is not installed, install it by executing the command python -m pip install pywin32 in the command prompt
After ensuring that both Python and pywin32 packages are installed in your system, restart NetSim and attempt to run VANET simulations.



Applicable Releasesv11v12v13


For v12 & v13


This could be due to several reasons.  NetSim interacts with SUMO in runtime,  during VANET simulations.

Both Python and pywin32 are required for VANET simulations to happen successfully. This is essential for interfacing NetSim with SUMO which is a python based road traffic simulator.

  • Check if Python 3.7 pywin32-224 is installed in your PC from the control panel.


  • If not installed, download and manually install it from the following links based on the system configuration:



  • Python 3.7 pywin32-224

           32bit: https://github.com/mhammond/pywin32/releases/download/b301/pywin32-301.win32-py3.9.exe

  • Python 3.7 pywin32-224

            64bit:  https://github.com/mhammond/pywin32/releases/download/b301/pywin32-301.win-amd64-py3.9.exe

  • Uninstall any other versions of Python already installed in the system to avoid conflict.
  • Check if python scrips (*.py) present in <NetSim_Install_Directory>/bin directory are not altered or contain errors due to customization is done.

Note: It is always recommended to run VANET simulations in Admin mode, preferably under the Administrator user account.


For v11


This could be due to several reasons.  NetSim interacts with SUMO in runtime,  during VANET simulations.

Both Python and pywin32 are required for VANET simulations to happen successfully. This is essential for interfacing NetSim with SUMO which is a python based road traffic simulator.

  • Check if Python 2.7 pywin32-220 is installed in your PC from the control panel.


Note: It is always recommended to run VANET simulations in Admin mode, preferably under the Administrator user account.
