Large PCAP log files cannot be directly opened in Wireshark. However, these files can be modified easily using several ways to view and analyze them.


Some of the ways are explained here:

  • Split based on packets per file: split the packet output to different files based on uniform packet counts with a maximum of <packets per file> each
Syntax:

C:\Program...\Wireshark>editcap.exe  -F pcap  -c <Packets_per_File> C:\path_to\Name_of_Large_Traffic_Capture_File.pcap C:\path_to\Name_of_Smaller_Traffic_Capture_File.pcap

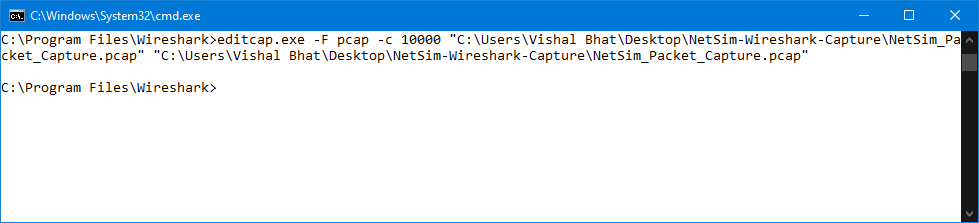

Example:

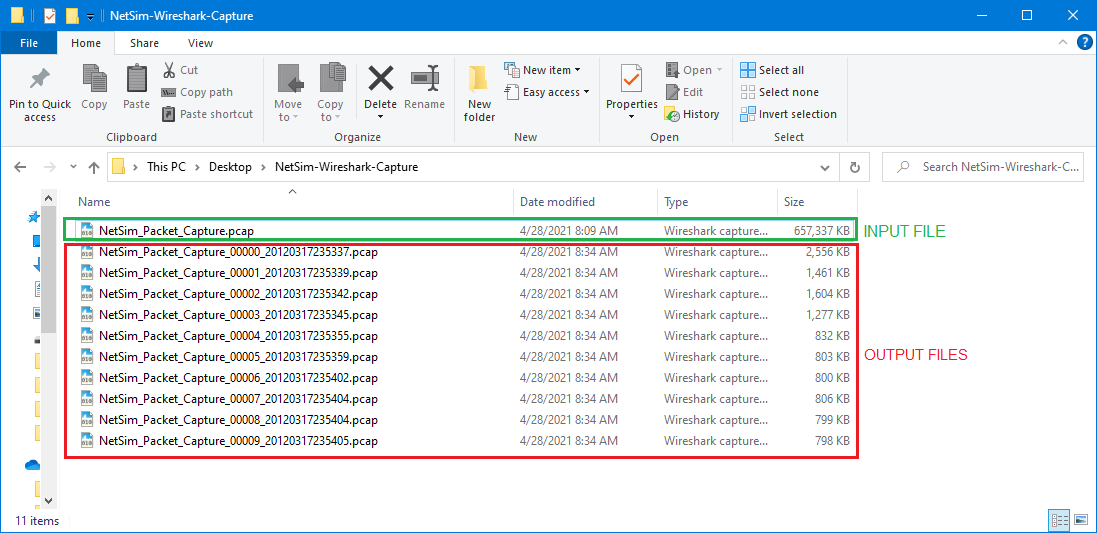

Output:


  • Split based on seconds per file: split the packet output to different files based on uniform time intervals with a maximum of <seconds per file> each.
Syntax:

C:\Program...\Wireshark>editcap.exe  -F pcap  -i <seconds per file> C:\path_to\Name_of_Large_Traffic_Capture_File.pcap C:\path_to\Name_of_Smaller_Traffic_Capture_File.pcap

Example:


Output:




Refer to editcap - The Wireshark Network Analyzer 3.4.4  for further details.
