Step 1: Go to Start and search for VPN Settings. Select the VPN settings option as shown below:

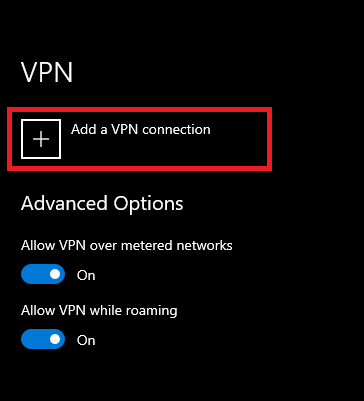

Step 2: Click on the Add a VPN Connection option as shown below:



Step 3: In the Add a VPN connection window, you can create a VPN profile with a VPN type set to PPTP or L2TP. We recommend using PPTP and L2TP can be attempted if you face any issue connecting with PPTP. Procedure for both VPN Types is provided below:


Method 1: VPN TYPE:  Point to Point Tunneling Protocol(PPTP)



VPN Provider

Windows( Built-in)

Connection Name

Give any name for VPN connection

Server Name or Address

tetcosnetsim.zapto.org

VPN Type

Point to Point Tunneling Protocol(PPTP)

Type of Sign-in Info

Username and Password

Enter the username and password that is shared with you.





Method 2: VPN TYPE:  L2TP/IPsec with pre-shared key


VPN Provider

Windows( Built-in)

Connection Name

Give any name for VPN connection

Server Name or Address

tetcosnetsim.zapto.org

VPN Type

L2TP/IPsec with pre-shared key

Pre-shared Key
Enter pre-shared key that is shared with you

Type of Sign-in Info

Username and Password

Enter the username and password that is shared with you.





If you are following VPN Type as L2TP/IPsec with the pre-shared key then you may have to perform the steps given in this link.

https://docs.microsoft.com/en-US/troubleshoot/windows-server/networking/configure-l2tp-ipsec-server-behind-nat-t-device

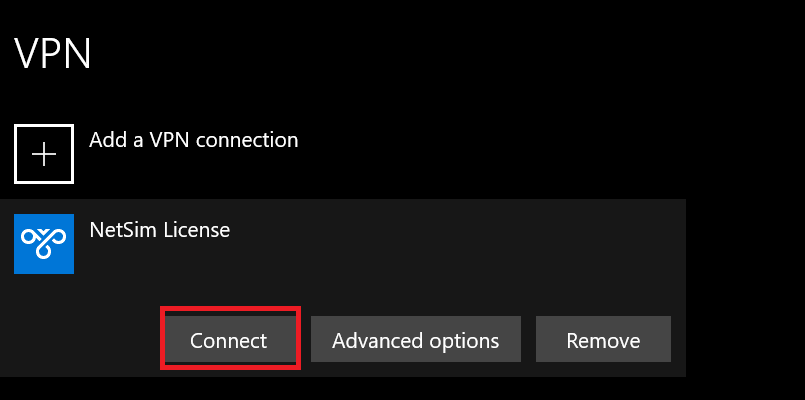

Step 4: After creating a VPN profile using any of the above methods, you can click on the VPN name and click on the Connect button as shown below:

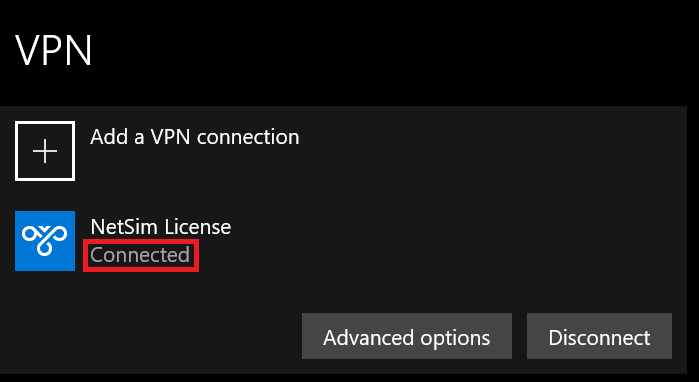

Step 5:  You are now successfully connected to VPN.

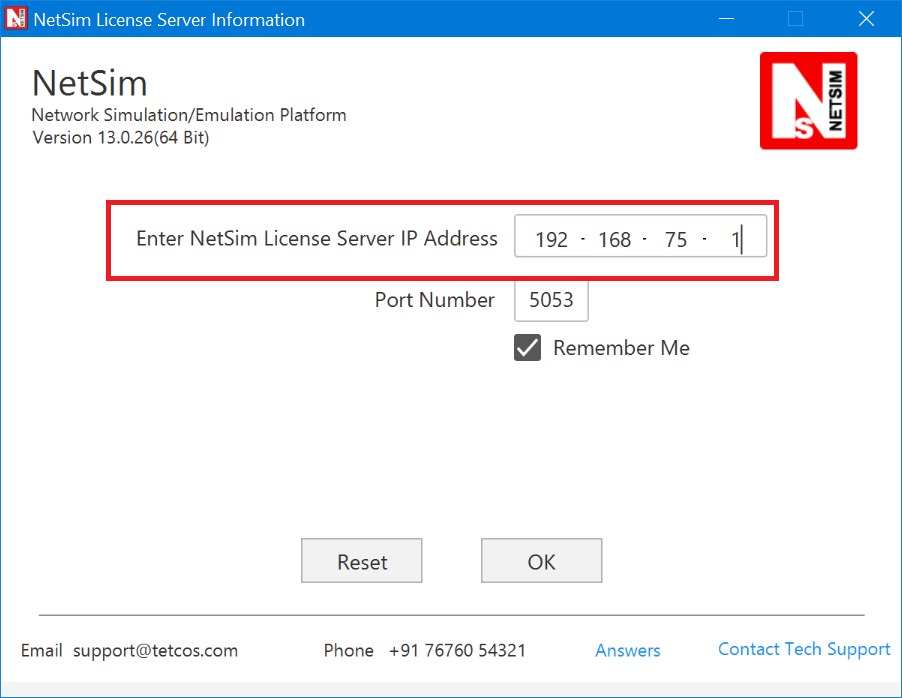

Step 6: Start NetSim and provide the License Server IP as 192.168.75.1 and click on OK.



Troubleshooting Internet connectivity related issues when connected to VPN:


When creating a new VPN connection in Windows, the option Use default gateway on the remote network is enabled by default. It means that all traffic from your computer is sent through a VPN tunnel. If internet connectivity gets disrupted after connecting to VPN the following procedure can be followed to disable Internet traffic routing through a VPN tunnel


1. Press Win + R > Type ncpa.cpl > OK

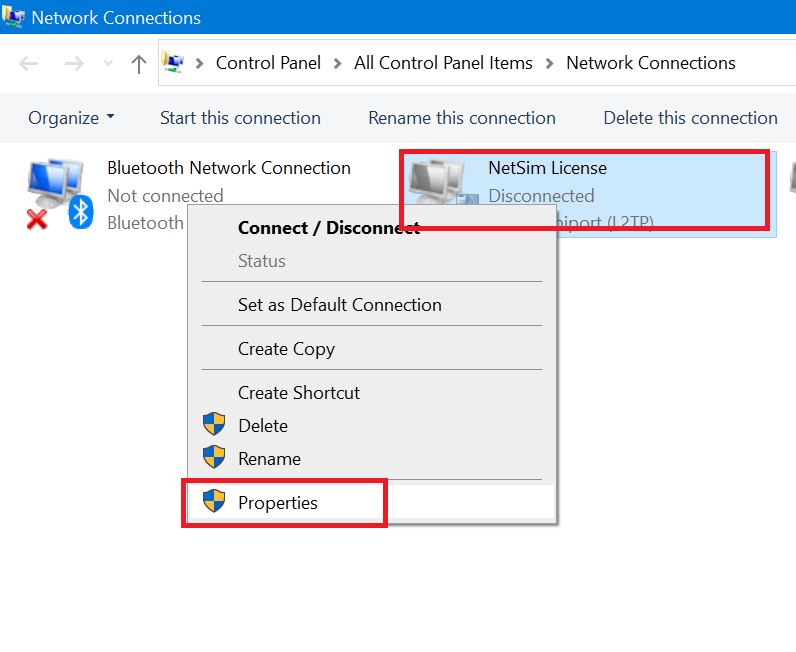

2. Right Click on the VPN adaptor > Properties

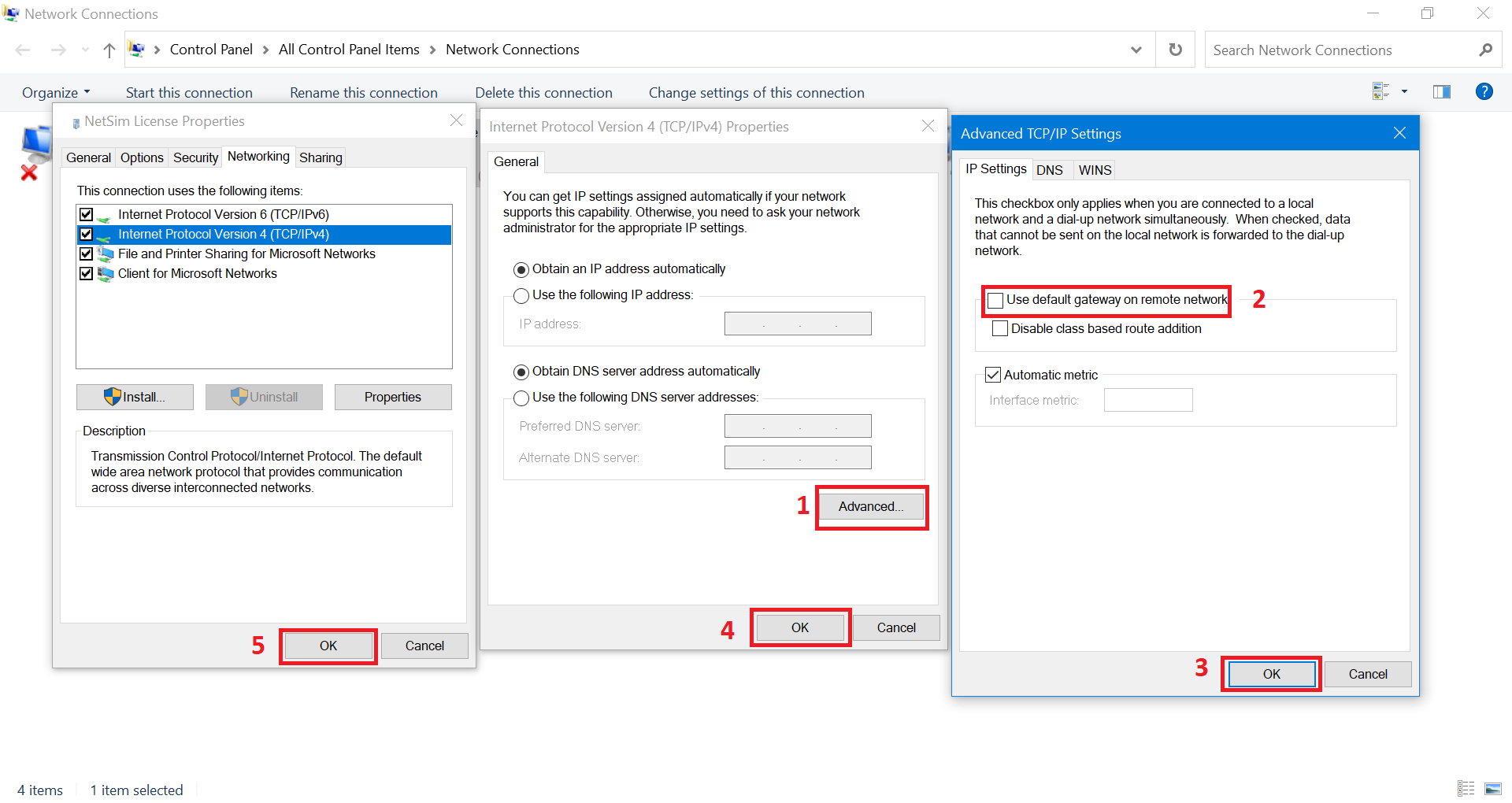

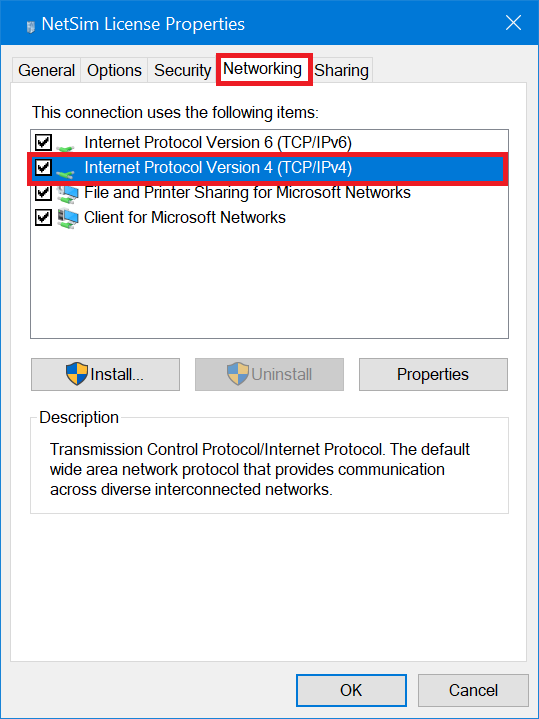

3. Go to Networking Tab > Double click on Internet Protocol Version 4 (TCP/IPv4)

4. Click on Advanced > Uncheck Use Default gateway on remote network > Click on OK > OK > Again OK




For more details refer to Connect to a VPN in Windows 10 (microsoft.com)
