NetSim supports different types of node placement strategies namely,

• Uniform Placement (Places the devices uniformly)
• Random Placement (Places the devices randomly)
• File-Based Placement (Places the devices based on the file given as input)

This article will help users to generate file-based placement file and use it in NetSim. The file can be either a text file or a  .csv file with following format:

Column 1: Device name. Example: Wireless Node

Column 2: Device Type. Available Types: WIRELESSNODE , SENSOR (WSN, IoT), SINKNODE (WSN, IoT)

Column 3: X Co-ordinate

Column 4: Y Co-ordinate

A row, covering all columns, can be commented on using a '#'. This is useful for creating a row heading.

Example:
# DeviceName, DeviceType, X, Y
Node, WIRELESSNODE, 100, 100

Creating a .csv file using MS Excel: Users can open MS Excel, create column headings as explained above, then populate row 2 onwards, and when saving, choose .csv as the extension.

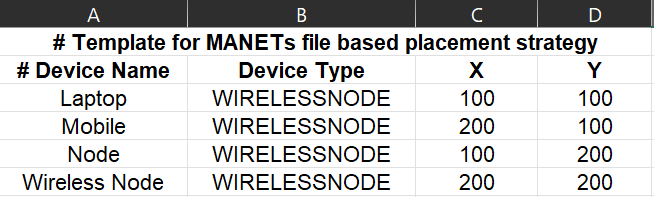

Users can download a suitable template for generating scenarios.

Technology	Template Download Link
MANETs, TDMA Networks	(Node-Placement-MANET-TDMA.csv)
WSN, IoT	(Node-Placement-WSN-IoT.csv)
